Setup step on the Budget planning configuration page · Budgeting

Set up Budget planning configuration

Used to create the building blocks of budget planning, such as parameters, scenarios, stages, workflows, columns and layouts.

Used by: Budget clerk, Budget contributor, Budget manager and 4 more roles
Business process: Create procurement budgets with Dynamics 365 Finance
Menu item: BudgetPlanningConfigurationParameters
Main table: BudgetPlanningConfiguration
Data entity: BudgetPlanParameterEntity
Setup steps: 1 on this page

Show what matters for

Everyone

1What it is and why

What it is	A setup page that holds most of the settings needed for budget planning.
What you do here	Used to create the building blocks of budget planning, such as parameters, scenarios, stages, workflows, columns and layouts.
Example	For example, a company can create one column for previous-year actuals and twelve monthly columns, then build a layout where every column except the actuals can be edited.

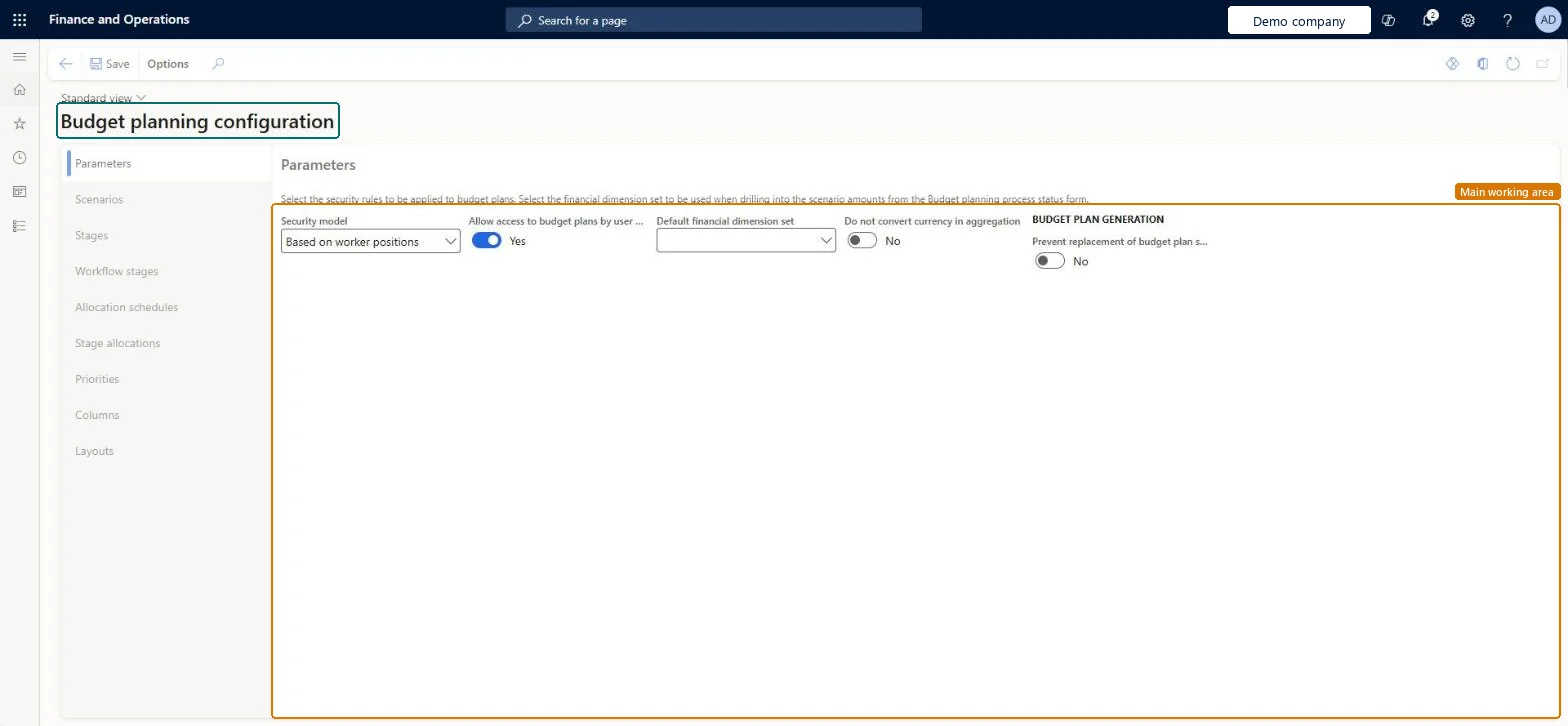

Budget planning configuration page in Dynamics 365 — The page in a working Dynamics 365 system. page title tab to open what to set or check

Functional consultant · Solution architect

2Where it fits

Business process	Develop procurement and sourcing strategy › Develop spend strategy › Create procurement budgets with Dynamics 365 Finance
Menu path	Budgeting › Setup › Budget planning › Budget planning configuration
Set up first	Budgeting workflows Microsoft Learn ↗Period allocation categories Microsoft Learn ↗Budget allocation terms Microsoft Learn ↗
Used next by	Budget planning process Microsoft Learn ↗
Related pages	—
In this process	← Set up Budget cycles

End user · Functional consultant

3How to do it

Step by step, with screenshots

Set up Budget planning configuration2 screens

Used to create the building blocks of budget planning, such as parameters, scenarios, stages, workflows, columns and layouts.

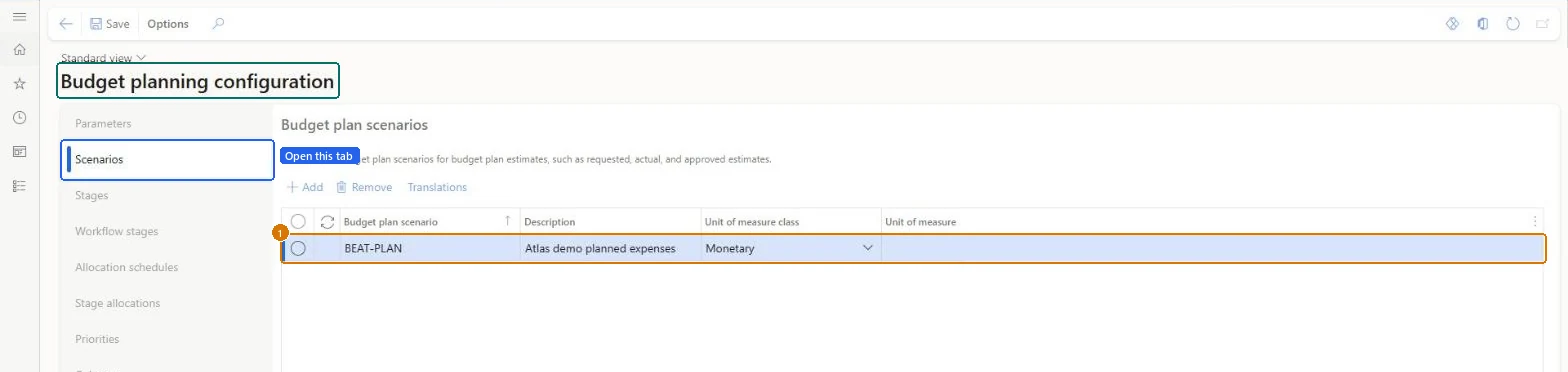

Screen 1
Create the budget plan scenario
Go to Budgeting > Setup > Budget planning > Budget planning configuration, Scenarios tab
1. Open the Scenarios tab
2. Select Add
3. Enter the Budget plan scenario and Description, and set Unit of measure class to Monetary
4. Select Save
1Budget plan scenario BEAT-PLAN
Description Atlas demo planned expenses
Unit of measure class Monetary
Show the full screen
page title tab to open what to set or check

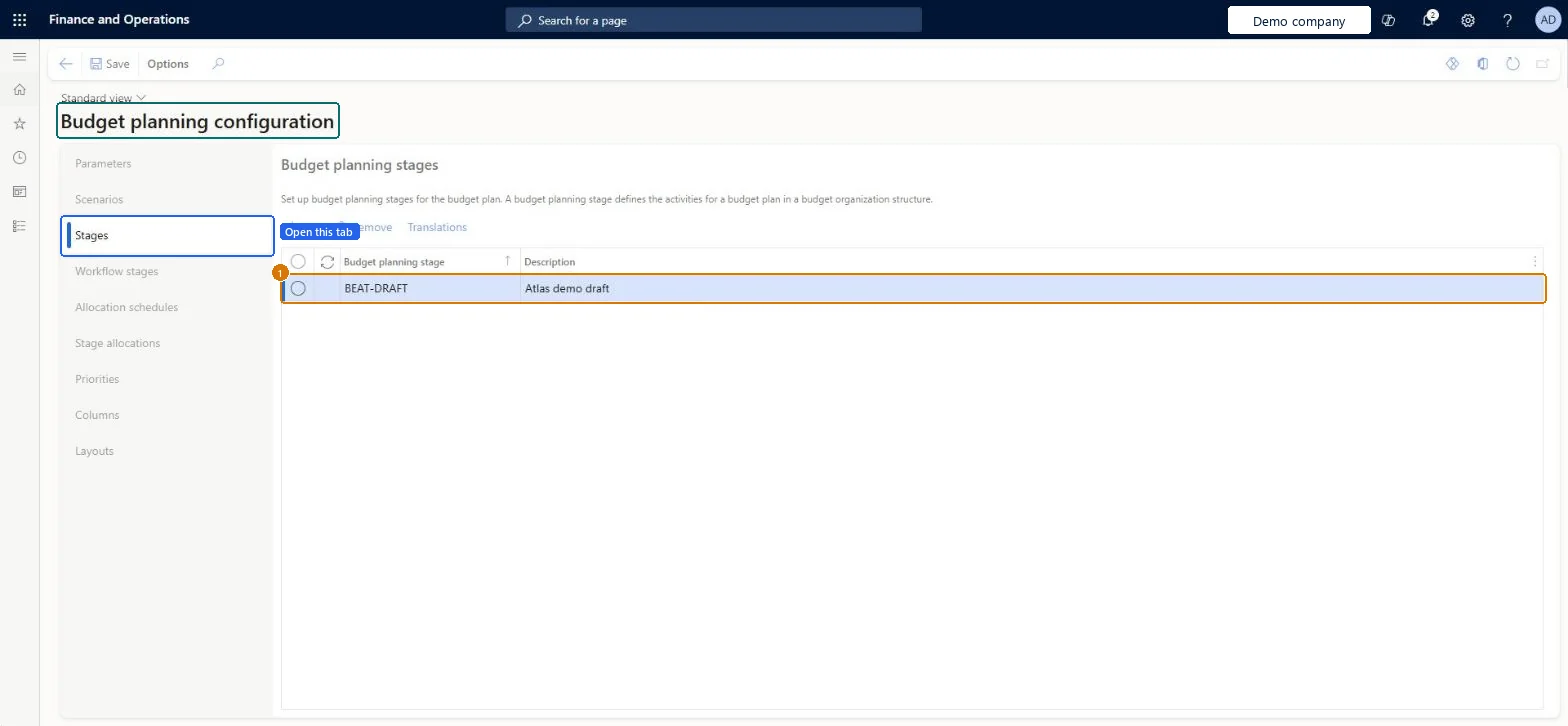

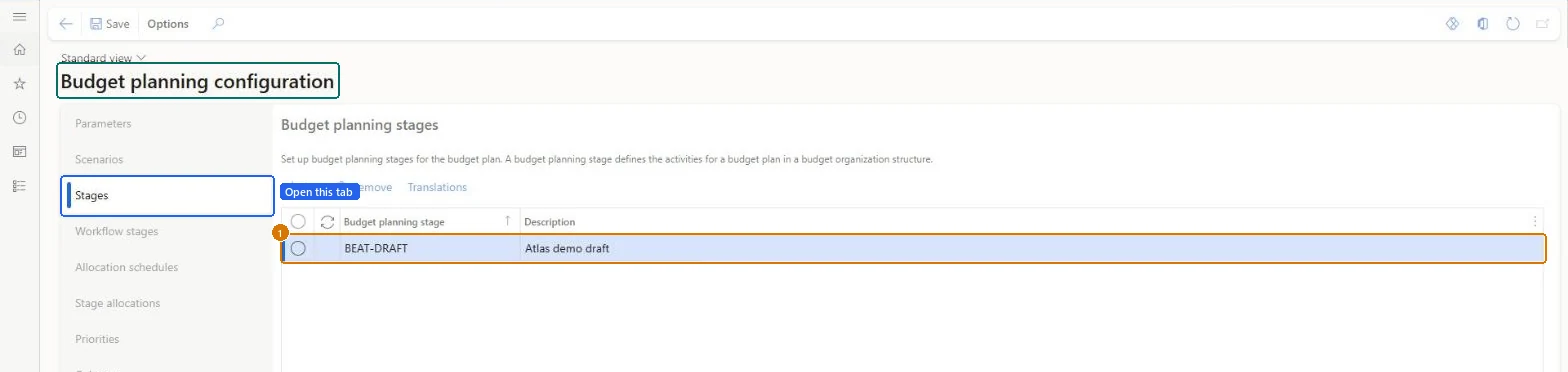

Screen 2
Create the budget planning stage
Go to Budgeting > Setup > Budget planning > Budget planning configuration, Stages tab
1. Open the Stages tab
2. Select Add
3. Enter the Budget planning stage and Description
4. Select Save
1Budget planning stage BEAT-DRAFT
Description Atlas demo draft
Show the full screen
page title tab to open what to set or check

1Budget plan scenario	BEAT-PLAN
Description	Atlas demo planned expenses
Unit of measure class	Monetary

1Budget planning stage	BEAT-DRAFT
Description	Atlas demo draft

Microsoft's steps

Go to Budgeting > Setup > Budget planning > Budget planning configuration.
On the Parameters tab, set the Security model.
On the Scenarios tab, create or check the budget plan scenarios.
On the Columns tab, create the columns, for example one per month.
On the Layouts tab, create a layout, select a ledger dimension set and add the columns as elements.
Mark which columns can be edited, and select Descriptions to choose which dimensions show names.
Select Template > Generate to create the Excel template for the layout.

Source: Microsoft Learn ↗

Field guide

Field	What it means	Worked example	Table column
Security model	Sets how users get access to budget plans.Microsoft Learn ↗	—	`SecurityModel`
Parameters	Security rules for budget plans and default dimensions for drilling into scenario amounts.Microsoft Learn ↗	—	—
Scenarios	Categories of budget data, in amounts or quantities.Microsoft Learn ↗	—	—
Stages	The steps a budget plan follows from start to final approval.Microsoft Learn ↗	—	—
Workflow stages	Where you create budget planning workflows from stages and a budgeting workflow.Microsoft Learn ↗	—	—
Allocation schedules	Allocations that run automatically during workflow processing.Microsoft Learn ↗	—	—
Stage allocations	Link an allocation schedule to a workflow and stage.Microsoft Learn ↗	—	—
Priorities	Optional categories and objectives used to classify and rank budget plans.Microsoft Learn ↗	—	—
Columns	Amount or quantity columns, each based on a budget plan scenario.Microsoft Learn ↗	—	—
Layouts	Define the rows and columns a budget plan shows.Microsoft Learn ↗	—	—
Budget plan scenario	—	BEAT-PLAN	—
Description	—	Atlas demo planned expenses	—
Unit of measure class	—	Monetary	—
Budget planning stage	—	BEAT-DRAFT	—

Functional consultant

4Setup decisions

Setup step	Recommended value and why	Decision · common mistake · test
Set up Budget planning configuration	—	—

Solution architect

5Design impact

Shared or per company	Per company: each legal entity has its own records. Microsoft data model ↗
Can it be undone	—
Feature or country	—
If you change it later	Once an Excel template is generated for a layout, the layout is locked and can't be edited. Microsoft Learn ↗

Technical architect

6Technical

Menu item	`BudgetPlanningConfigurationParameters` Checked in Dynamics 365
Form	`BudgetPlanningConfiguration` Checked in Dynamics 365
Table	`BudgetPlanningConfiguration`Shown as “Budget planning configuration” in Record infoChecked in Dynamics 365
Data entities	`BudgetPlanParameterEntity`Budget plan parameter Microsoft data model ↗
Who can open it	PrivilegesMaintain budget planning configuration `BudgetPlanningConfigurationMaintain`View budget planning configuration `BudgetPlanningConfigurationView`DutiesMaintain budget planning configuration and processes `BudgetPlanningConfigProcessMaintain`View budget planning configuration and processes `BudgetPlanningConfigProcessView` 7 security roles Budget clerk `BudgetBudgetClerk`Budget contributor `BudgetBudgetContributor`Budget manager `BudgetBudgetManager`Chief financial officer `CompanyChiefFinancialOfficer`Manager `HcmManager`Accounting manager `LedgerAccountingManager`Financial controller `LedgerFinancialController` Checked in Dynamics 365
Actions on the page	Options: Personalize, Page options, Edit, ShareChecked in Dynamics 365

Developer

7Developer

Open it directly	`https://<your-environment>/?mi=BudgetPlanningConfigurationParameters`
Integrate with	`BudgetPlanParameterEntity` data entity Microsoft data model ↗
Table definition	`BudgetPlanningConfiguration` columns and relations Microsoft data model ↗
