Setup step on the Executable class settings page · Tax

Set up Executable class settings

Used to register each executable class, and its parameters, so message processing actions can call it.

Used by: Accounts payable clerk, Collections manager, Accounts receivable clerk and 6 more roles
Business process: Report tax and financial data to authorities in Dynamics 365 Finance
Menu item: EMActionClass
Main table: EMActionClass
Data entity: —
Setup steps: 1 on this page

Show what matters for

Everyone

1What it is and why

What it is	A setup page for executable classes, the X++ classes that electronic message processing can call when an action needs an evaluation.
What you do here	Used to register each executable class, and its parameters, so message processing actions can call it.
Example	—

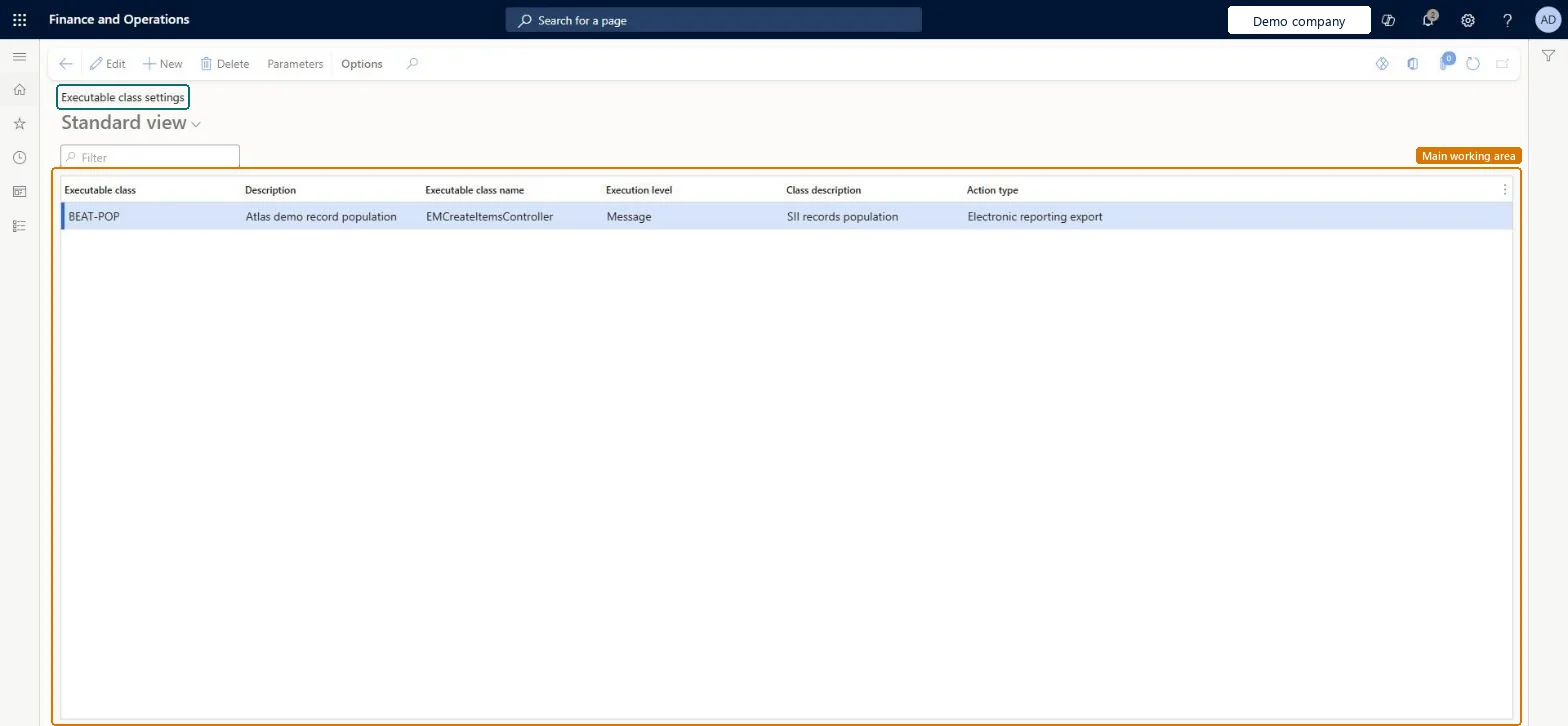

Executable class settings page in Dynamics 365 — The page in a working Dynamics 365 system. page title tab to open what to set or check

Functional consultant · Solution architect

2Where it fits

Business process	Record financial transactions › Record tax commitments › Report tax and financial data to authorities in Dynamics 365 Finance
Menu path	Tax › Setup › Electronic messages › Executable class settings
Set up first	—
Used next by	Message processing actions Microsoft Learn ↗
Related pages	—
In this process	← Set up Additional fields · Set up Populate records actions →

End user · Functional consultant

3How to do it

Step by step, with screenshots

Set up Executable class settings1 screen

Used to register each executable class, and its parameters, so message processing actions can call it.

Screen 1

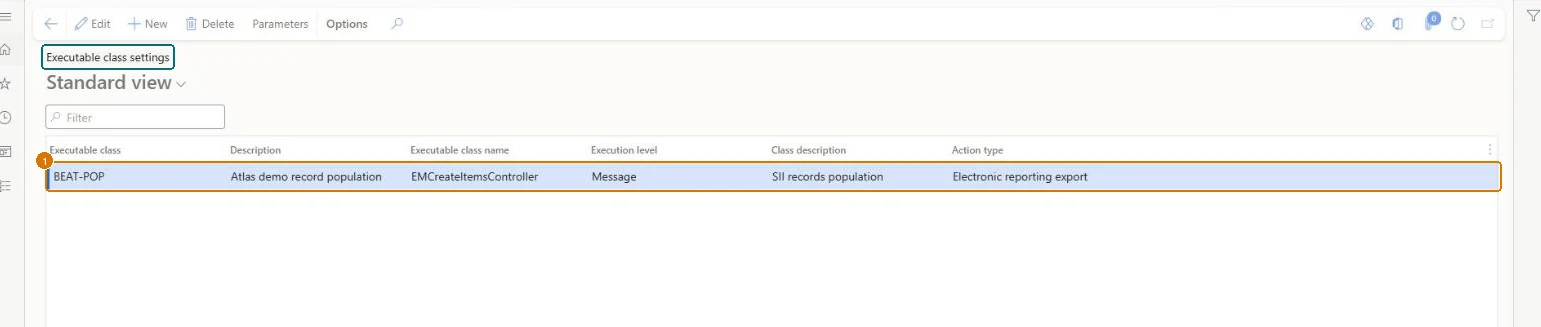

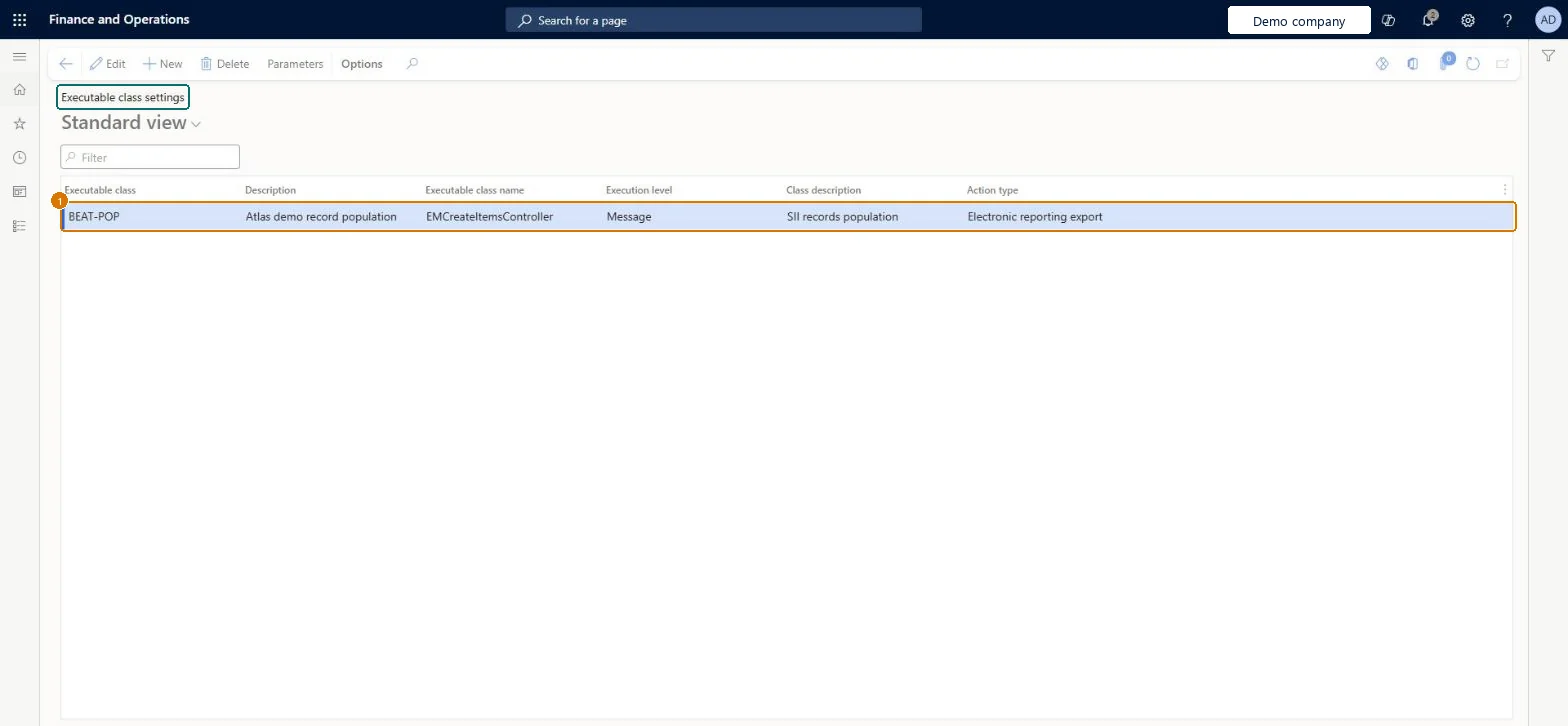

Create the executable class setting
Go to Tax > Setup > Electronic messages > Executable class settings
1. Select New
2. Enter the Executable class and Description
3. In Executable class name, select the class from the lookup
4. Select Save
1Executable class BEAT-POP
Description Atlas demo record population
Executable class name EMCreateItemsController
Execution level Message
Show the full screen
page title tab to open what to set or check

1Executable class	BEAT-POP
Description	Atlas demo record population
Executable class name	EMCreateItemsController
Execution level	Message

Microsoft's steps

Go to Tax > Setup > Electronic messages > Executable class settings.
Create a line, and enter the Executable class name and description.
In the Executable class name field, select the X++ class.
If the class has mandatory parameters, on the Action Pane, select Parameters.
Fill in the fields in the dialog box, and then select OK.

Source: Microsoft Learn ↗

Field guide

Field	What it means	Worked example	Table column
Executable class	The name you use when setting up the message processing action that calls the class.Microsoft Learn ↗	BEAT-POP	—
Executable class name	The X++ class to run.Microsoft Learn ↗	EMCreateItemsController	—
Execution level	The level the evaluation runs on; set automatically for the selected class.Microsoft Learn ↗	Message	—
Action type	The action type of the class, which controls the next actions offered for the message.Microsoft Learn ↗	—	—
Description	—	Atlas demo record population	—

Functional consultant

4Setup decisions

Setup step	Recommended value and why	Decision · common mistake · test
Set up Executable class settings	—	—

Solution architect

5Design impact

Shared or per company	—
Can it be undone	—
Feature or country	—
If you change it later	Parameters are saved only when you select OK in the Parameters dialog box; otherwise the class isn't called correctly. Microsoft Learn ↗

Technical architect

6Technical

Menu item	`EMActionClass` Checked in Dynamics 365
Form	`EMActionClass` Checked in Dynamics 365
Table	`EMActionClass`Shown as “Action class settings” in Record infoChecked in Dynamics 365
Data entities	—
Who can open it	PrivilegesMaintain electronic messages `ElectronicMessageMaintain`View electronic messages `ElectronicMessageView`DutiesMaintain sales tax transactions `TaxSalesTaxTransactionsMaintain`Inquire into sales tax transaction status `TaxSalesTaxTransactionStatusInquire` 9 security roles Collections manager `CollectionLetterCollectionsManager`Accounts receivable clerk `CustInvoiceAccountsReceivableClerk`Accounts receivable manager `CustInvoiceAccountsReceivableManager`Tax accountant `FBTaxAccountant_BR`Accountant `LedgerAccountant`Accounting manager `LedgerAccountingManager`Accounting supervisor `LedgerAccountingSupervisor`Sales manager `TradeSalesManager`Accounts payable clerk `VendInvoiceAccountsPayableClerk` Checked in Dynamics 365
Actions on the page	Options: Personalize, Page options, ShareChecked in Dynamics 365

Developer

7Developer

Open it directly	`https://<your-environment>/?mi=EMActionClass`
Integrate with	—
Table definition	—
