Setup step on the Transaction codes page · Tax

Set up Transaction codes

Used to set, for each transaction code, how invoice amounts and statistical amounts are calculated for transfer orders and for sales and purchase orders.

Used by: Accountant, Accounting manager, Accounting supervisor
Business process: Report tax and financial data to authorities in Dynamics 365 Finance
Menu item: IntrastatTransactionCode
Main table: IntrastatTransactionCode
Data entity: IntrastatTransactionCodeEntity
Setup steps: 1 on this page

Show what matters for

Everyone

1What it is and why

What it is	A setup page for the two-digit transaction codes that show the nature of a transaction in Intrastat reporting.
What you do here	Used to set, for each transaction code, how invoice amounts and statistical amounts are calculated for transfer orders and for sales and purchase orders.
Example	For example, transaction code 11, Outright purchase/sale, uses the invoice amount for both the invoice amount and the statistical amount.

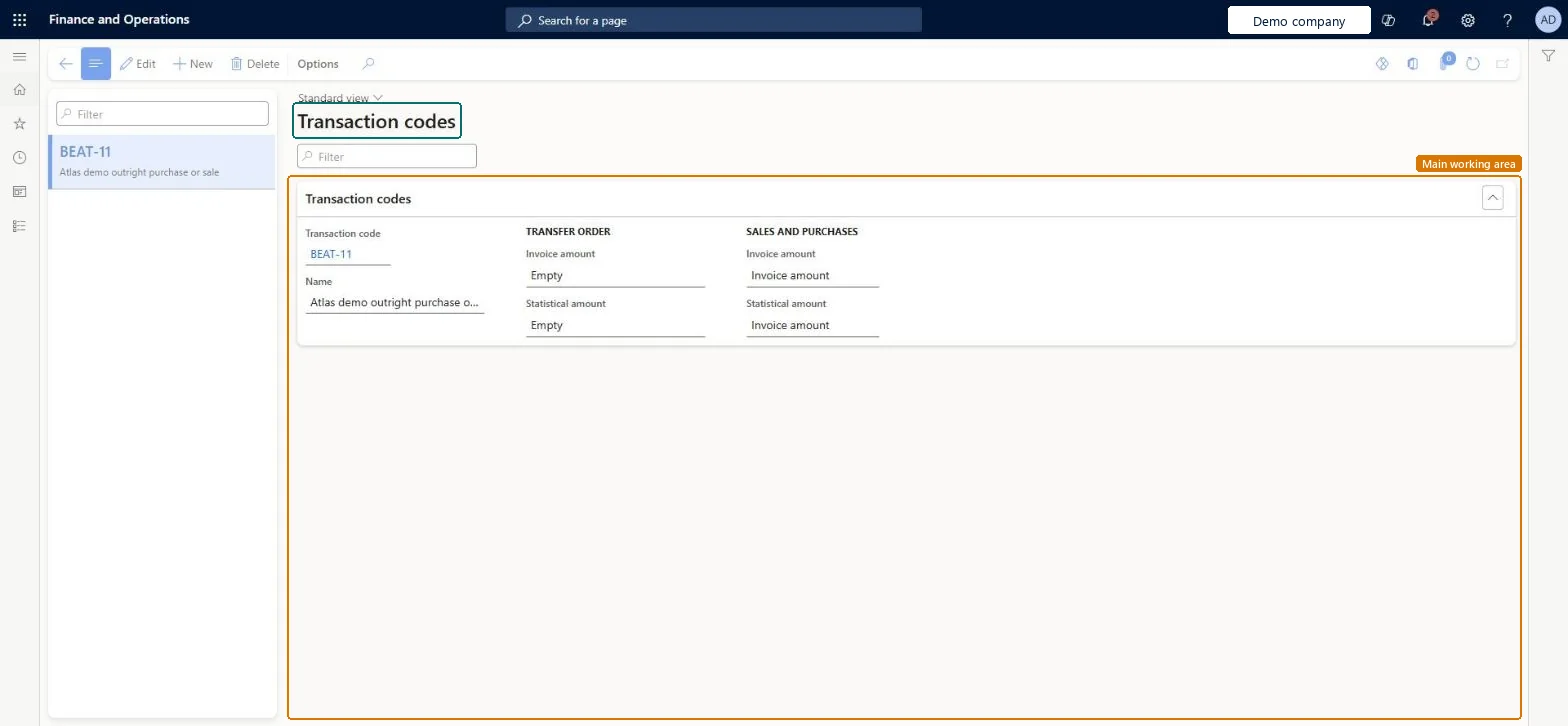

Transaction codes page in Dynamics 365 — The page in a working Dynamics 365 system. page title tab to open what to set or check

Functional consultant · Solution architect

2Where it fits

Business process	Record financial transactions › Record tax commitments › Report tax and financial data to authorities in Dynamics 365 Finance
Menu path	Tax › Setup › Foreign trade › Transaction codes
Set up first	—
Used next by	Foreign trade parameters Microsoft Learn ↗
Related pages	—
In this process	← Set up Statistics procedure · Set up Transport method →

End user · Functional consultant

3How to do it

Step by step, with screenshots

Set up Transaction codes1 screen

Used to set, for each transaction code, how invoice amounts and statistical amounts are calculated for transfer orders and for sales and purchase orders.

Screen 1

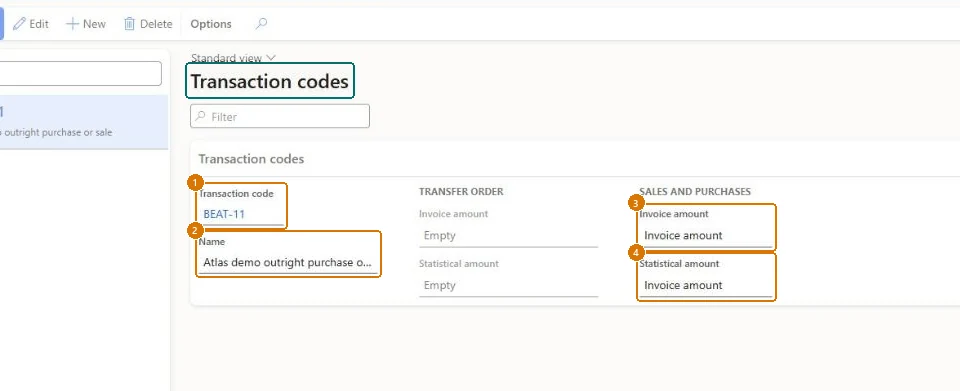

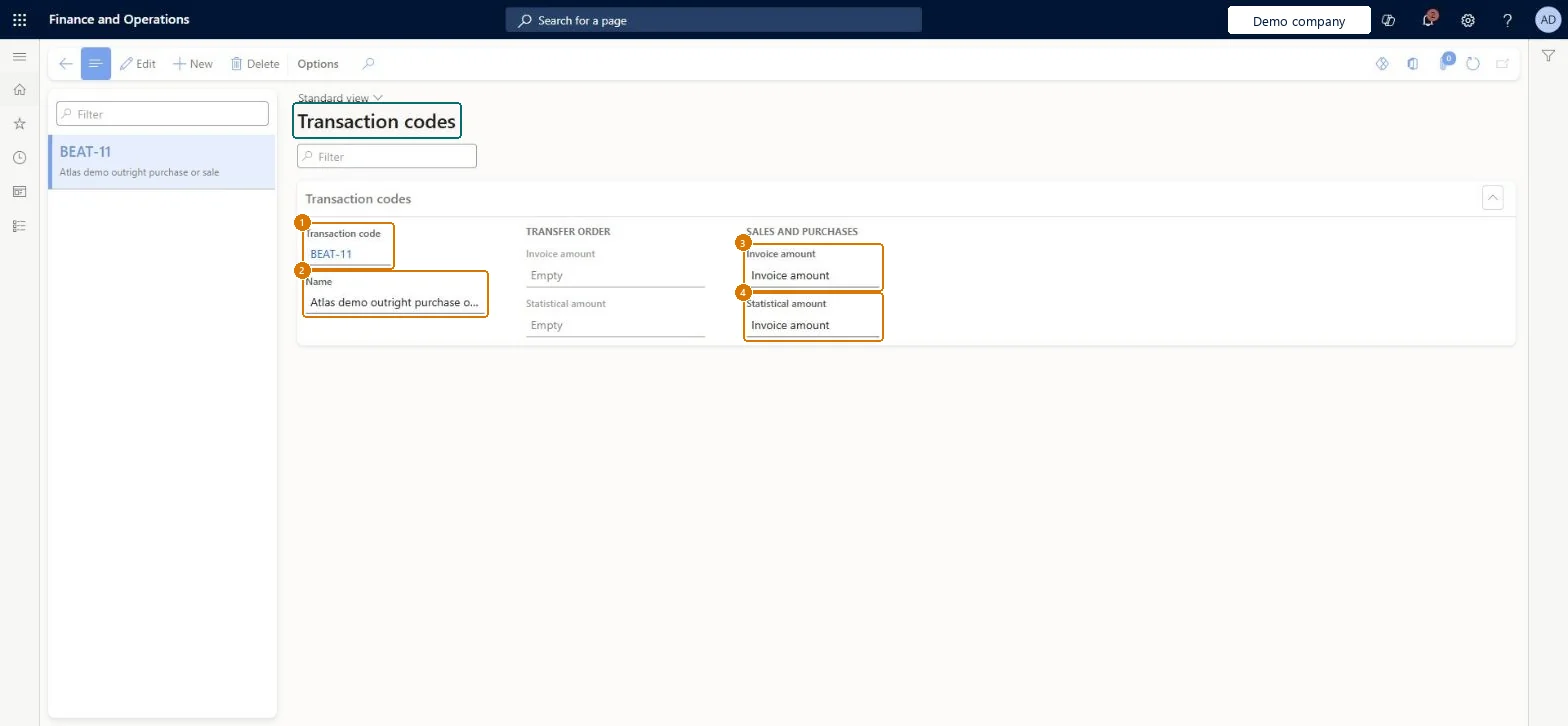

Create the transaction code
Go to Tax > Setup > Foreign trade > Transaction codes
1. Select New
2. Enter the Transaction code and Name
3. Under Sales and purchases, select the Invoice amount and Statistical amount rules
4. Select Save
1Transaction code BEAT-11
2Name Atlas demo outright purchase or sale
3Invoice amount Invoice amount
3Statistical amount Invoice amount
Show the full screen
page title tab to open what to set or check

1Transaction code	BEAT-11
2Name	Atlas demo outright purchase or sale
3Invoice amount	Invoice amount
3Statistical amount	Invoice amount

Microsoft's steps

Go to Tax > Setup > Foreign trade > Transaction codes.
On the Action Pane, select New.
In the Transaction code field, enter the code, such as 11.
In the Name field, enter a name.
In the Sales and purchases section, select the rules in the Invoice amount and Statistical amount fields.
Set the rules for transfer orders as needed, and then select Save.

Source: Microsoft Learn ↗

Field guide

Field	What it means	Worked example	Table column
Invoice amount	How the invoice amount is calculated: empty, the invoice amount or the base amount for orders; for transfer orders also cost or manual.Microsoft Learn ↗	Invoice amount	`InvoiceAmountCalcMethod`
Statistical amount	How the statistical amount is calculated, using the same rule options.Microsoft Learn ↗	Invoice amount	`StatisticalAmountCalcMethod`
Transaction code	—	BEAT-11	`TransactionCode`
Name	—	Atlas demo outright purchase or sale	`Name`

Functional consultant

4Setup decisions

Setup step	Recommended value and why	Decision · common mistake · test
Set up Transaction codes	—	—

Solution architect

5Design impact

Shared or per company	Per company: each legal entity has its own records. Microsoft data model ↗
Can it be undone	—
Feature or country	—
If you change it later	—

Technical architect

6Technical

Menu item	`IntrastatTransactionCode` Checked in Dynamics 365
Form	`IntrastatTransactionCode` Checked in Dynamics 365
Table	`IntrastatTransactionCode`Shown as “Transaction codes” in Record infoKey field: TransactionCode, NameChecked in Dynamics 365
Data entities	`IntrastatTransactionCodeEntity`Transaction codes Microsoft data model ↗
Who can open it	PrivilegesMaintain Intrastat transaction codes `IntrastatTransactionCodeMaintain`View Intrastat transaction codes `IntrastatTransactionCodeView`DutiesEnable Intrastat process `TaxIntrastatProcessEnable`Inquire into Intrastat reference data `TaxIntrastatReferenceDataInquire` 3 security roles Accountant `LedgerAccountant`Accounting manager `LedgerAccountingManager`Accounting supervisor `LedgerAccountingSupervisor` Checked in Dynamics 365
Actions on the page	Options: Personalize, Page options, ShareChecked in Dynamics 365

Developer

7Developer

Open it directly	`https://<your-environment>/?mi=IntrastatTransactionCode`
Integrate with	`IntrastatTransactionCodeEntity` data entity Microsoft data model ↗
Table definition	`IntrastatTransactionCode` columns and relations Microsoft data model ↗
