Setup step on the Reconciliation matching rule sets page · Cash and bank management

Set up Reconciliation matching rule sets

Used to run a whole series of matching rules in one pass instead of one rule at a time.

Used by: Chief financial officer, Accountant, Accounting manager and 3 more roles
Business process: Establish matching rules for bank reconciliation in Dynamics 365 Finance
Menu item: BankReconciliationMatchRuleSet
Main table: BankReconciliationMatchRuleSet
Data entity: BankReconciliationMatchRuleSetEntity
Setup steps: 1 on this page

Show what matters for

Everyone

1What it is and why

What it is	A setup page where you group reconciliation matching rules that run in sequence during bank reconciliation.
What you do here	Used to run a whole series of matching rules in one pass instead of one rule at a time.
Example	—

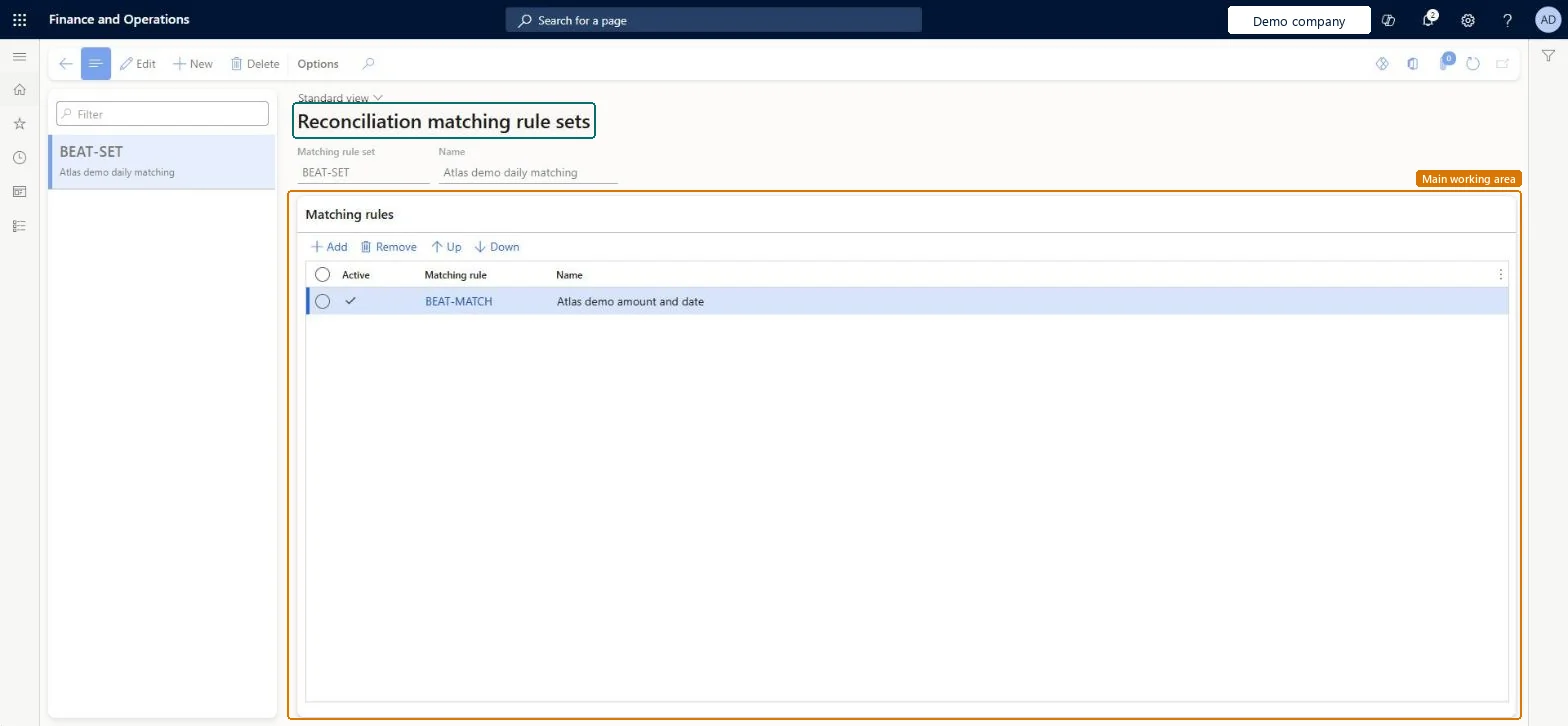

Reconciliation matching rule sets page in Dynamics 365 — The page in a working Dynamics 365 system. page title tab to open what to set or check

Functional consultant · Solution architect

2Where it fits

Business process	Define accounting policies › Define banking policies › Establish matching rules for bank reconciliation in Dynamics 365 Finance
Menu path	Cash and bank management › Setup › Advanced bank reconciliation setup › Reconciliation matching rule sets
Set up first	Reconciliation matching rules Microsoft Learn ↗
Used next by	Bank accounts Microsoft Learn ↗Bank reconciliation Microsoft Learn ↗
Related pages	—
In this process	← Set up Reconciliation matching rules

End user · Functional consultant

3How to do it

Step by step, with screenshots

Set up Reconciliation matching rule sets1 screen

Used to run a whole series of matching rules in one pass instead of one rule at a time.

Screen 1

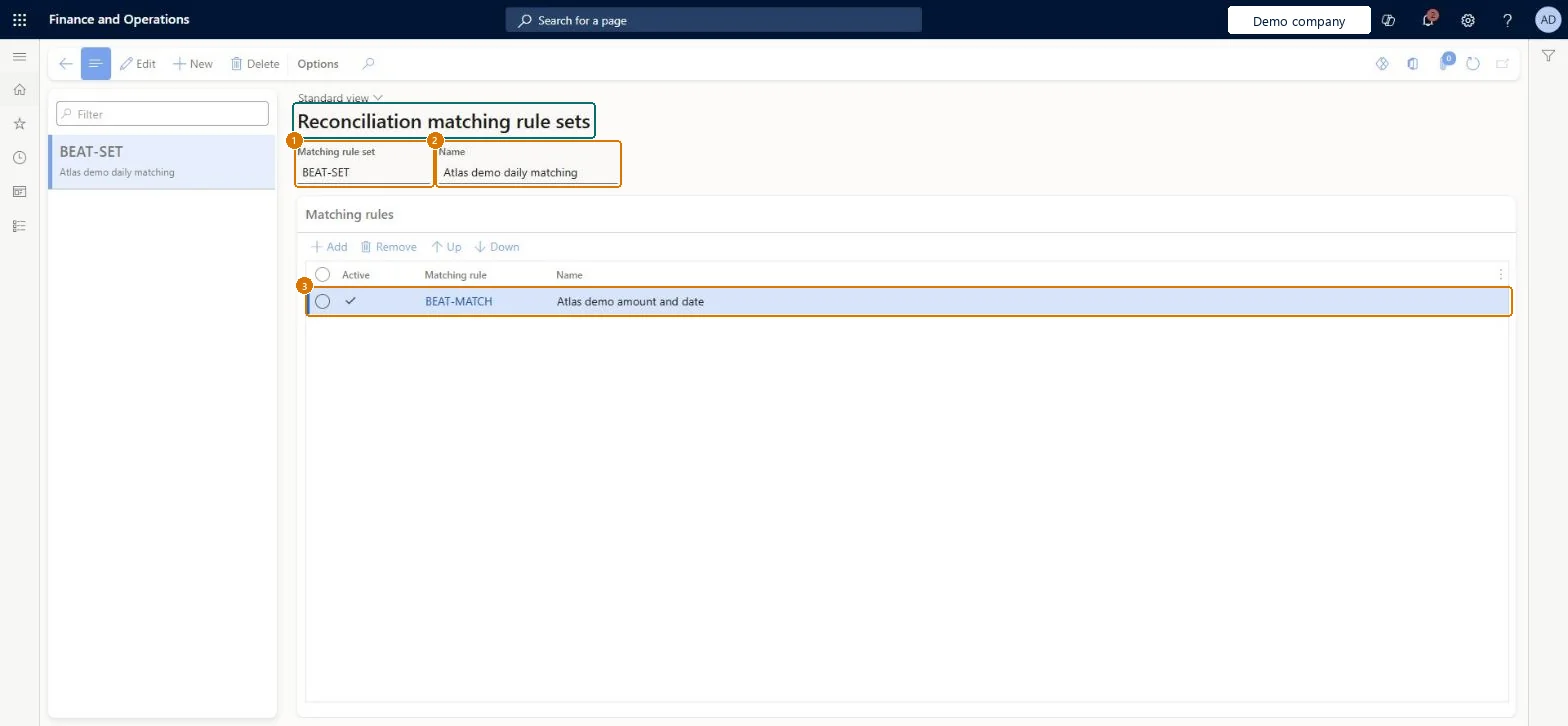

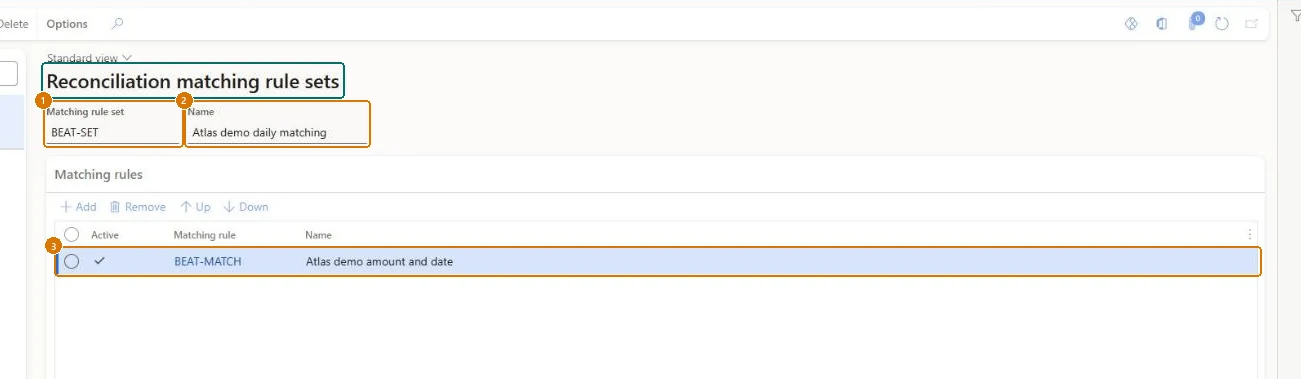

Create the matching rule set
Go to Cash and bank management > Setup > Advanced bank reconciliation setup > Reconciliation matching rule sets
1. Select New, and enter the Matching rule set and Name
2. In the Matching rules section, select Add and select the Matching rule
3. Use Up and Down to order the rules
4. Select Save
1Matching rule set BEAT-SET
2Name Atlas demo daily matching
Matching rule BEAT-MATCH (Active)
Show the full screen
page title tab to open what to set or check

1Matching rule set	BEAT-SET
2Name	Atlas demo daily matching
Matching rule	BEAT-MATCH (Active)

Microsoft's steps

Go to Cash and bank management > Setup > Advanced bank reconciliation setup > Reconciliation matching rule sets.
Select New, and enter a name and description.
Add the matching rules in the order they should run.
Select Save.

Source: Microsoft Learn ↗

Field guide

Field	What it means	Worked example	Table column
Matching rule set	—	BEAT-SET	—
Name	—	Atlas demo daily matching	`Name`
Matching rule	—	BEAT-MATCH (Active)	—

Functional consultant

4Setup decisions

Setup step	Recommended value and why	Decision · common mistake · test
Set up Reconciliation matching rule sets	—	—

Solution architect

5Design impact

Shared or per company	Shared: the same records are used by every legal entity. Microsoft data model ↗
Can it be undone	—
Feature or country	—
If you change it later	The rules run top to bottom, and with Reconcile after import the bank account's default set runs as soon as a statement is imported. Microsoft Learn ↗

Technical architect

6Technical

Menu item	`BankReconciliationMatchRuleSet` Checked in Dynamics 365
Form	`BankReconciliationMatchRuleSet` Checked in Dynamics 365
Table	`BankReconciliationMatchRuleSet`Shown as “Reconciliation matching rule sets” in Record infoKey field: SetIdChecked in Dynamics 365
Data entities	`BankReconciliationMatchRuleSetEntity`Reconciliation matching rule sets Microsoft data model ↗
Who can open it	PrivilegesMaintain bank reconciliation matching rule set `BankReconciliationMatchRuleSetMaintain`View bank reconciliation matching rule set `BankReconciliationMatchRuleSetView`DutiesInquire into bank account reconciliation status `BankBankAcctReconStatusInquire`Enable bank management process `BankBankManagementProcessEnable` 6 security roles Chief financial officer `CompanyChiefFinancialOfficer`Accountant `LedgerAccountant`Accounting manager `LedgerAccountingManager`Accounting supervisor `LedgerAccountingSupervisor`Financial controller `LedgerFinancialController`Treasurer `PaymTreasurer` Checked in Dynamics 365
Actions on the page	Options: Personalize, Page options, ShareChecked in Dynamics 365

Developer

7Developer

Open it directly	`https://<your-environment>/?mi=BankReconciliationMatchRuleSet`
Integrate with	`BankReconciliationMatchRuleSetEntity` data entity Microsoft data model ↗
Table definition	`BankReconciliationMatchRuleSet` columns and relations Microsoft data model ↗
